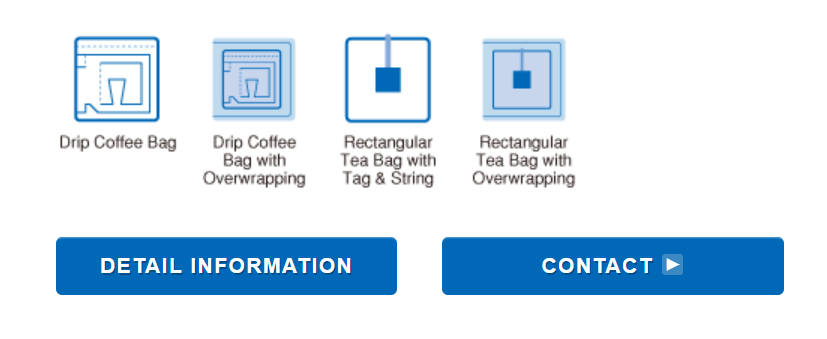

Packing Solutions:
Rectangular drip coffee bag (naked)
Rectangular drip coffee bag bag (with envelope)
Packaging Method | Rectangular: 3-Side Ultrasonic Sealing and Cutting Envelope: 3-Side heat Sealing and Cutting |
Measurement Method | Slide Doser |
Packaging Materials | Rectangular: PLA,Nylon, Non-Woven Fabric, and any suitable filters for ultrasonic sealing Envelope : heat sealing laminated film |
Filter Width | 120–180 mm |
Film Width | 200mm |
Drip coffee Bag Size | Rectangular: 74 (W) x 90 (L) mm |
Coffee Bag Size | Envelope : 100(W)X120(H ) mm |
Capacity | Max 30 bags/min |
Dimensions | 970 (W) x 790 (D) x 2,350 (H) mm |
Weight | 350 kg |
Power Supply | 3-Phase / 220 V / 3.0 kW |
Compressed Air | 500 L/min. (6 bar) |
CE Marking | Not Available |
Nitrogen filling | Available |
